Fully Automatic Sheet To Sheet Laminating Machine
Product Description:
INTRODUCTION:
The intelligent sheet to sheet laminator is suitable for laminating cardboard and corrugated board. It adopts the perfect combination of motion control system and servo correction system, and uses multiple sets of photoelectric sensors to sense the relative position of the bottom paper. , Control the servo motors on both sides of the top paper to do compensation, complete the top paper tracking the position of the bottom paper, and make the top paper and the bottom paper accurately positioned. The laminating machine is easy to operate.
Applicable materials:
Top paper --- 120 ~ 800g/m paper
Bottom paper--- ≤10mm ABCDEF corrugated board ≥300gsm
Glue - Corn starch glue, white glue etc., PH value between 6 ~ 8
● Cardboard laminate with corrugated or cardboard laminate with cardboard.
● Automatic detection of top and bottom paper, automatic servo correction technology. Make the top paper automatically track and fit the bottom paper, and the accuracy is high.
● The bottom paper feeding part use imported servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.
● The multifunctional rack of the bottom paper are suitable for curved corrugated.
● Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min glue quantity.
Parameters:
| Model | ZGFM 1500 | ZGFM 1700 |
| Max size | 1500*1500mm | 1700*1700mm |
| Min size | 360*380mm | 360*400mm |
| Top Paper | 120-800g | 120-800g |
| Bottom paper | ≤10mm ABCDEF corrugated board ≥300gsm cardboard | ≤10mm ABCDEF corrugated board ≥300gsm cardboard |
| Max speed | 150m/min | 150m/min |
| Power | 25kw | 27kw |
| Stick accuracy | ±1mm | ±1mm |
BRANCH INTRODUCTION:
1. BOTTOM SHEET FEEDING
Use imported Servo motor controlling system, with Japan NITTA suction belt and big air blower to ensure smooth feeding of 2ply, 3ply, 4ply, 5ply and cardboard.

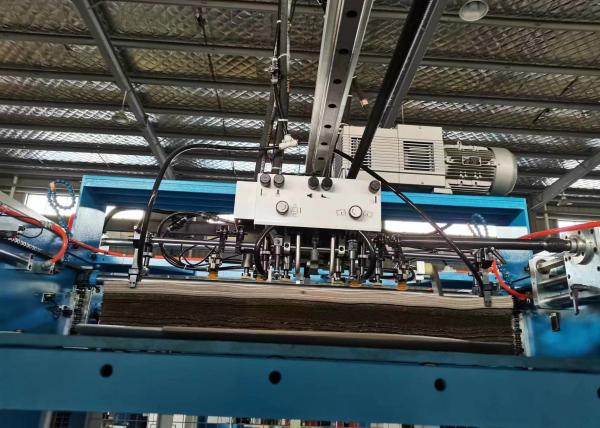

2. TOP SHEET FEEDING MECHANISM
Both paper lifting and feeding nozzle of high speed auto dedicated feeder can be freely adjusted to be adapted to both thin and thick paper. Together with Becker pump, ensure top feeding paper run fast and smoothly.
3. ELECTRICAL SYSTEM
Designed and adopt U.S.A Parker motion controller together with Yaskawa Servo system and inverter, Siemens PLC to ensure machine run at max. speed and accuracy as premium performance and running stability.
4. POSITIONING SYSTEM & GLUE ROLLER
Photocell together with Parker Dynamic module and Yaskawa Servo system ensure the accuracy of orientation of top and bottom paper. Stainless steel glue roller with fine anilox grinding to guarantee even glue coating even at min. glue quantity.
5. Transmission System
Gates synchronous belt together with SKF bearing as main transmission is adopted to ensure stability. Both pressure rollers, dampening roller and glue value can be easily adjusted by handle with mechanical encoder.
